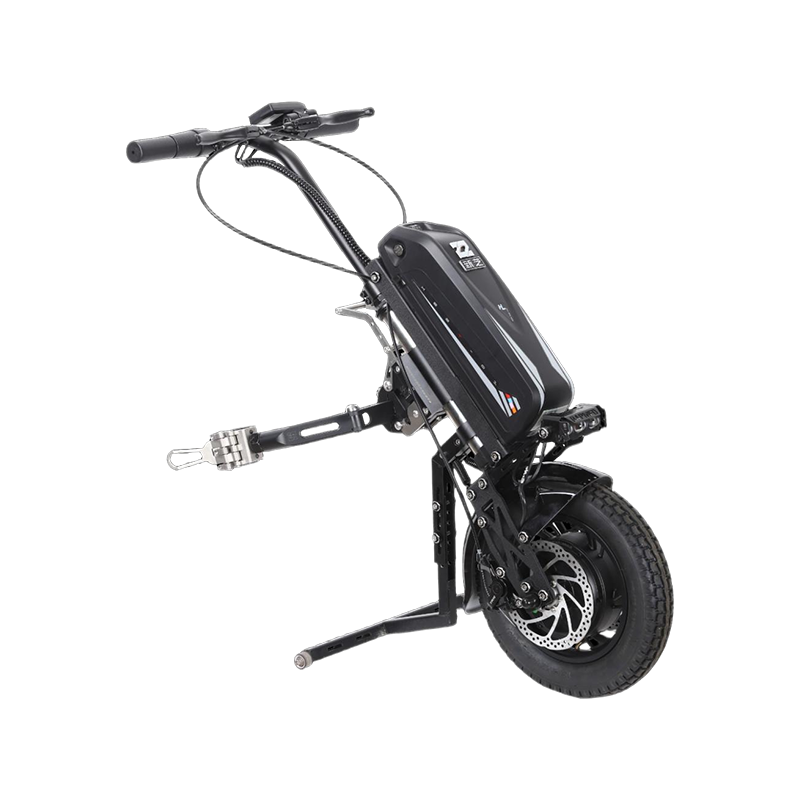

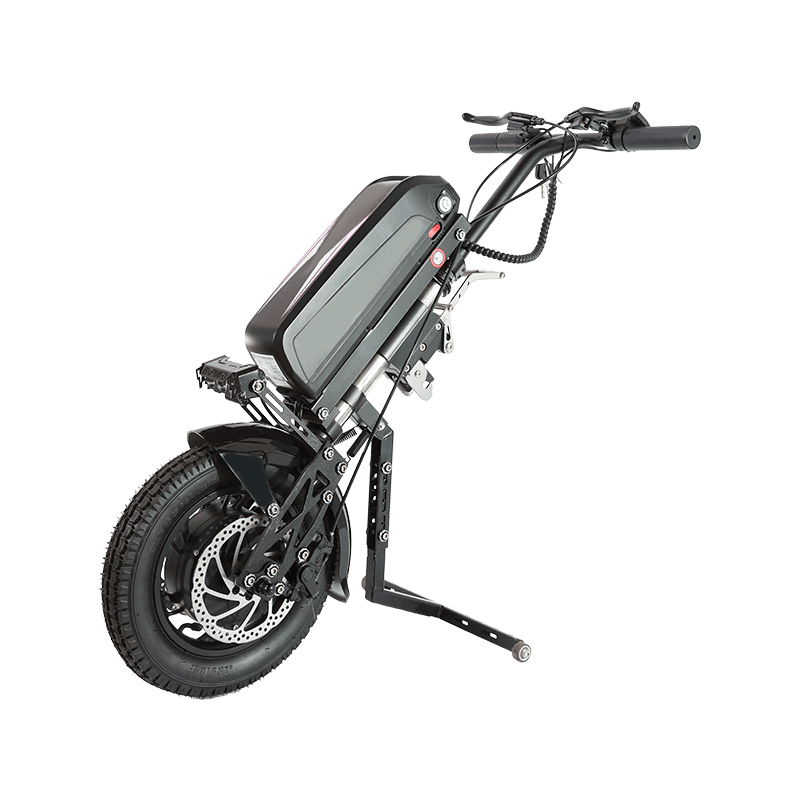

All-Terrain Electric Wheelchair Power Attachment - NeoPath

SUZHOU COMPAW INTELLIGENT TECHNOLOGY CO., LTD. designs and manufactures the All-Terrain Electric Wheelchair Power Attachment - NeoPath manufacturer — a front-mounted electric drive head that turns a standard manual wheelchair into an all-round powered mobility platform without replacing the chair. We build it in Suzhou on a 50,000 ㎡ production base with more than 300 staff, drawing on 25 years of manufacturing experience in rehabilitation aids and accessible mobility equipment. Distributors, rehabilitation equipment channels, rental operators and care institutions in more than 70 export markets carry our power attachments as a repeatable, serviceable product line.

Where NeoPath Sits in Our Power Attachment Range

As a Wholesale All-Terrain Electric Wheelchair Power Attachment - NeoPath Suppliers, Exporter, Company, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.

NeoPath is the balanced all-round platform in our five-model power head family: SlimTough for portable, compact transport; Zepath for comfort-led riding; ProPath for professional and institutional duty; OmniPath for off-road conditions; and NeoPath for everyday home, community and short suburban travel on flat and slightly rough surfaces. It is one of five platforms inside our China Power Trike Wheelchair Attachment Manufacturers range, so the same mounting logic, controller family and service approach carry across the line.

• Home and indoor use: low-speed manoeuvring through doorways, corridors and yards with stepless control.
• Community and park routes: sustained range with enhanced shock absorption over kerbs, paving joints and packed gravel.
• Short suburban trips: the larger battery supports medium-to-long outings on paved and slightly broken ground.
• Channel and rental fleets: a single common platform that simplifies parts holding and operator training.

NeoPath Technical Specification

Frame, Shell and Built-In Durability

The chassis is a thickened aluminium alloy frame with additional reinforcement at the key stress points where the drive head takes torque from the motor and the rider's steering input. An impact-resistant ABS shell covers the drive and battery zone, protecting the assembly against knocks during transport, kerb contact and everyday handling. Pneumatic inner and outer tyres on the 12-inch wheel add a second layer of cushioning alongside the enhanced shock absorption in the fork assembly.

Drive, Range and Terrain Fit

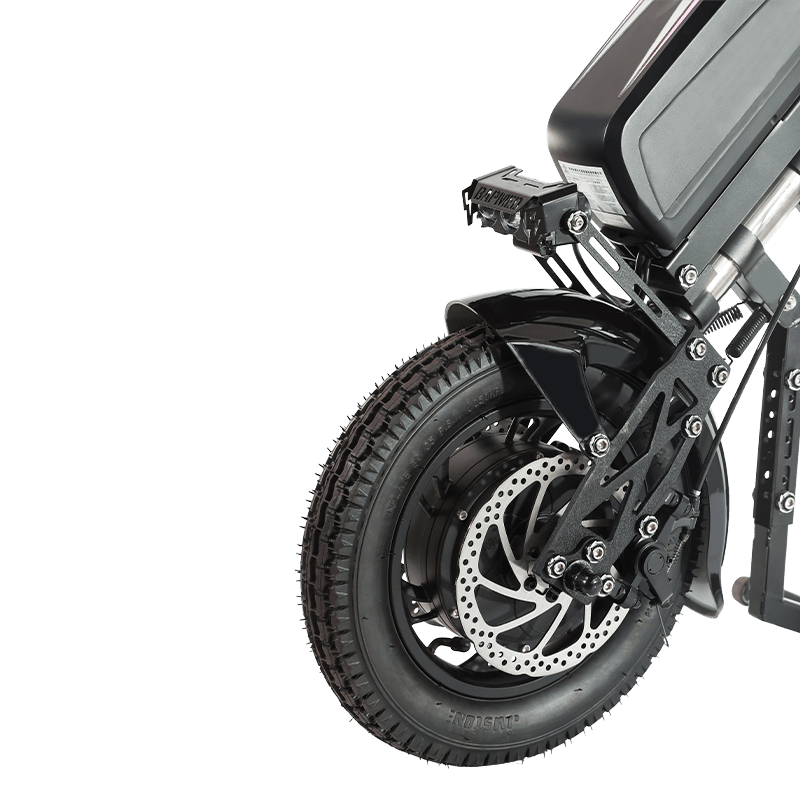

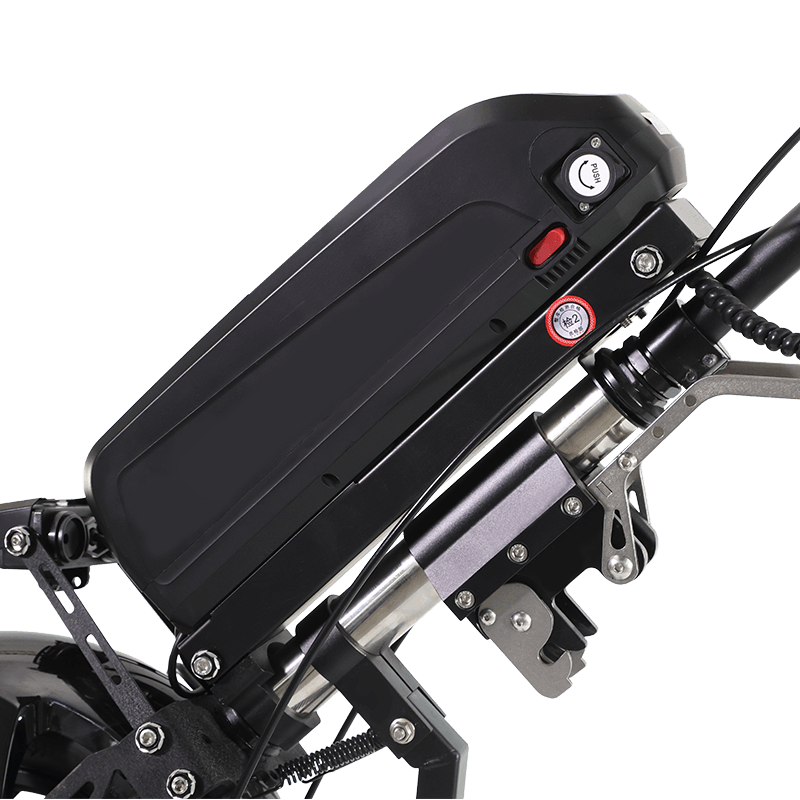

The 12-inch 350W brushless gearless motor drives a single front wheel, so the wheelchair's own rear wheels and castors stay untouched. Range of 45 km ±5 km is achieved with the 48V 8Ah lithium pack and varies with rider and payload weight, terrain roughness, ambient temperature, tyre pressure and how much of the ride uses the highest of the three speed settings. The 6-tube dual-protocol controller manages throttle response and the reverse mode used for tight indoor turns and reversing off kerbs.

Mounting and Wheelchair Interface

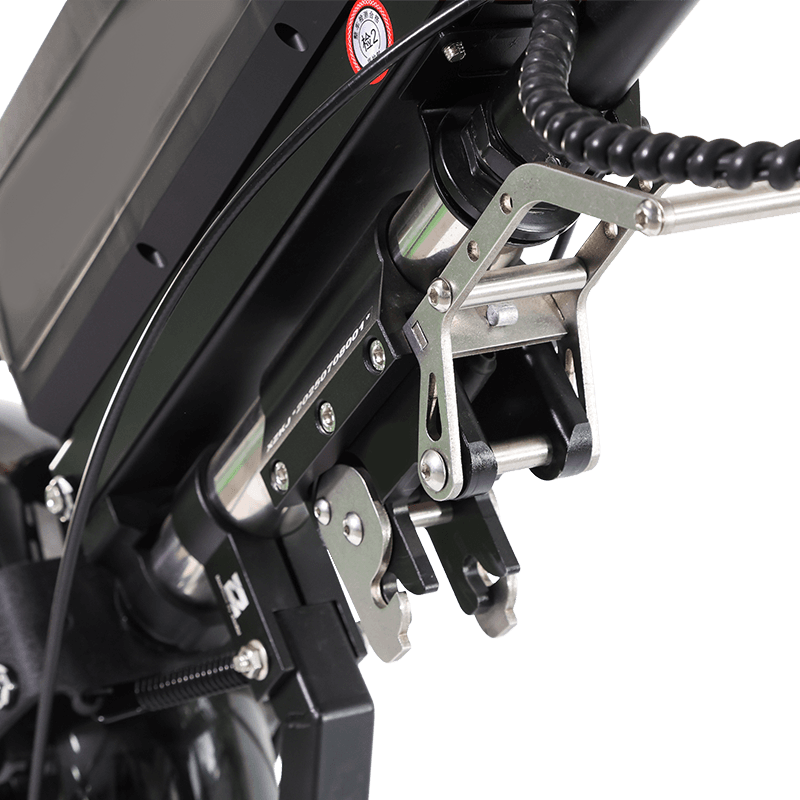

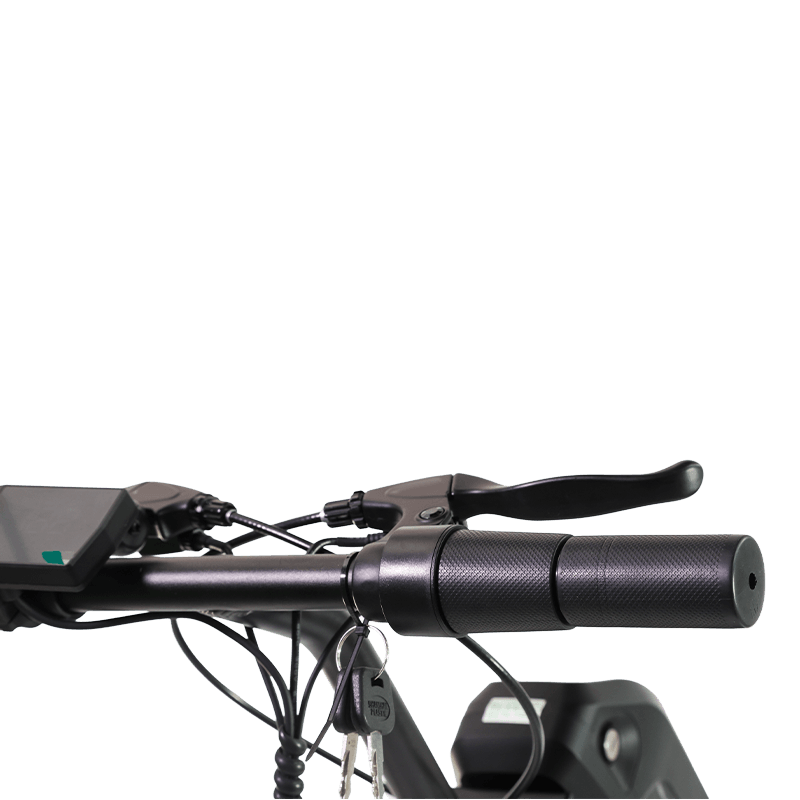

NeoPath connects to standard manual wheelchair frames without modifying or replacing the chair. The drive head locks into the receiver, the LCD dashboard runs a power-on self-check, and the rider controls speed steplessly from the handlebar; the brake engages automatically when the unit is stopped. Installation sequence we design around:

1. Connect and lock the drive head to the wheelchair frame.
2. Power on and confirm battery self-check on the LCD dashboard.
3. Use stepless throttle control for smooth pull-away.
4. Confirm automatic braking at standstill before handover.

Configuration Matrix for Your Order

Quality Control, Compliance and Project Handover

Production follows full-process quality control to international standards, from incoming alloy, ABS and electrical components through motor, controller and battery assembly to final packing. Our products are certified for the EU, North America and other mainstream markets, and we adapt documentation and declarations to the destination requirement during the project. For institutional and clinical programmes we support handover with technical inspection, equipment calibration and operator training so the attachment enters service with a known configuration.

Information We Use to Configure Your Solution

• Host wheelchair brand, frame tube diameters and attachment receiver position.
• Typical rider plus payload weight carried at the mounting point.
• Route profile: indoor floors, community paving, park paths and expected distance per day.
• Target market, mains voltage and required charger plug standard.
• Compliance or declaration documents required at import.
• Branding requirement, manual languages and carton marking.
• Order volume, distribution model and spare-part kit split.

Serviceability, Spares and Documentation

Consumables and wear items — pneumatic tyres and tubes, brake cables, chargers, dashboards and mounting hardware — are supplied through our China Electric Handcycle Attachment Accessories Manufacturers programme so channel partners can hold a practical service stock. We provide multilingual technical documentation, online troubleshooting guides and remote fault diagnosis support, and we can take OEM/ODM briefs through functional parameters, appearance design and interaction logic where a market needs a different configuration. For off-road-biased projects we also offer the Off-Road Electric Wheelchair Power Attachment - OmniPath from the same mounting family.

NeoPath Questions from Project Teams

What range does NeoPath deliver in real use?

The rated figure is 45 km ±5 km from the 48V 8Ah lithium battery under standard test conditions. Real distance moves with payload, surface roughness, ambient temperature, tyre pressure and how much of the journey uses the highest speed setting.

Which wheelchairs can it be fitted to?

NeoPath is built for ordinary manual wheelchair frames and locks on through a quick-connect drive head, so the chair itself is not modified or replaced. We check the frame tube dimensions of the host wheelchair against the receiver bracket before confirming a configuration.

What drive and speed control does it use?

A 12-inch 350W brushless gearless motor with a 6-tube dual-protocol controller, giving 25 km/h top speed, three speed settings, reverse mode and stepless throttle response through the LCD dashboard.

How is braking handled?

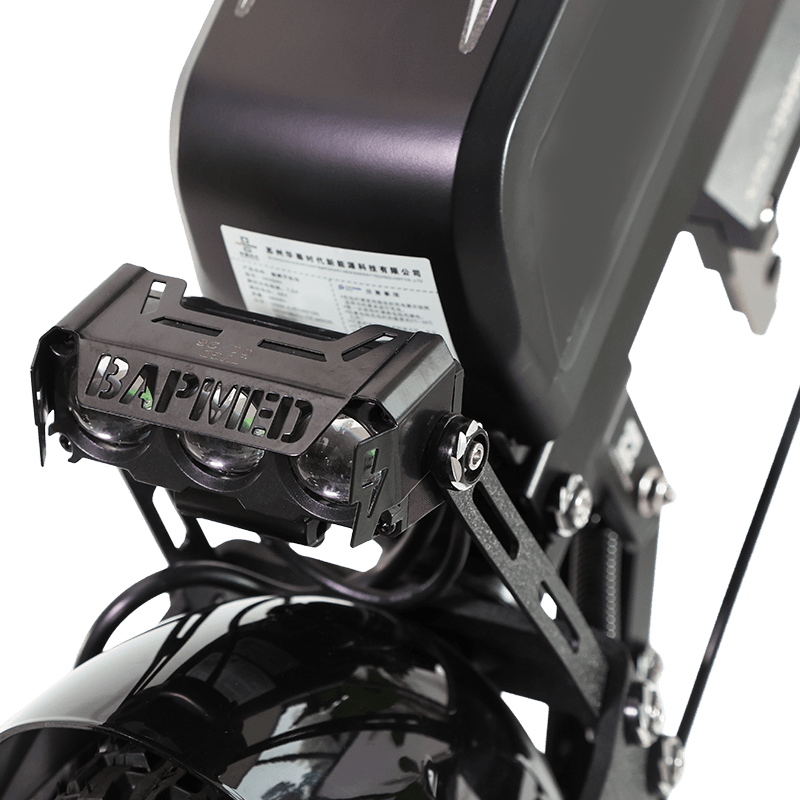

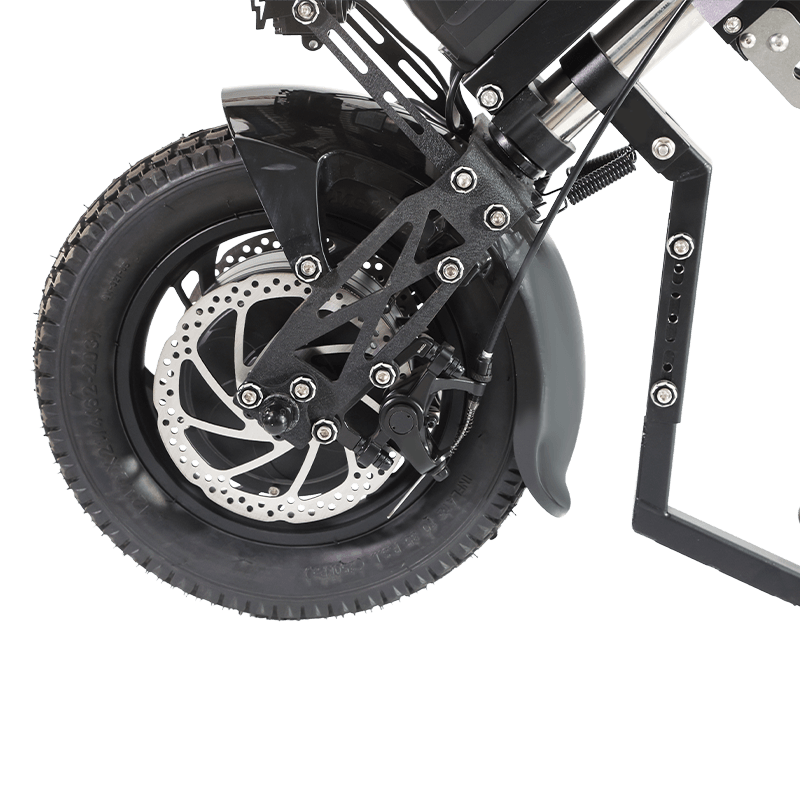

A 2-in-1 cable-controlled disc brake is operated from the handlebar, and the unit brakes automatically when stopped. The LED headlight with four adjustable colours supports low-light and evening routes.

Can you build NeoPath with our own branding?

Yes. Our OEM/ODM programme covers appearance design, colourways, decals, dashboard labelling, manual languages and packaging marking, developed from your market concept through to batch production.

What do you need from us to prepare a quotation?

Host wheelchair details, rider plus payload weight, expected route and daily distance, destination market and charger standard, required documents, branding and manual languages, plus order volume and spare-part split. With those inputs we confirm the configuration, packaging scope and documentation set for the project.
